Build Your Own Teak Cockpit Grate

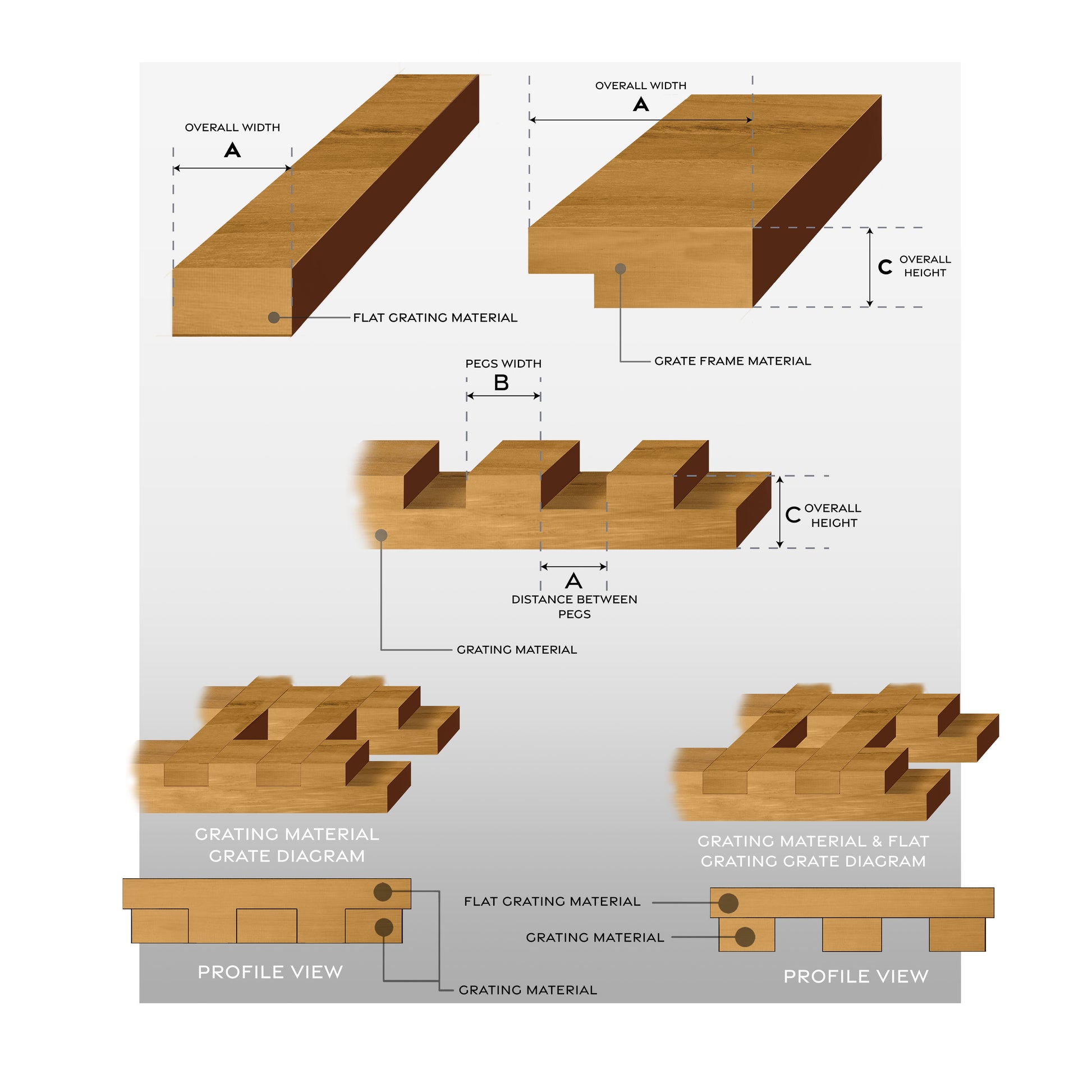

Build your own customized cockpit grate.  Whitecap offers notched grating material in three thickness/ cutout sizes with corresponding flat grate strips.  A grate can be built two ways: Use notched strips in both directions, or use notched strips in one direction on the bottom layer and flat strips in the opposite direction on the top layer.  This construction style will allow water to drain underneath grates installed on flat surfaces.

When Builidng a grate use materials that are all the same thickness, 1/2", 3/4" or 1".

3/4" Grate Material

Use in showers or cockpits with relatively flat configurations.

Material Ordering Guidelines:

3/4" Grating: One strip of each type of grating for every 1-1/2" of the area you are covering in both directions

If framing is required, consider Dimension A of the framing material.
