White Nylon

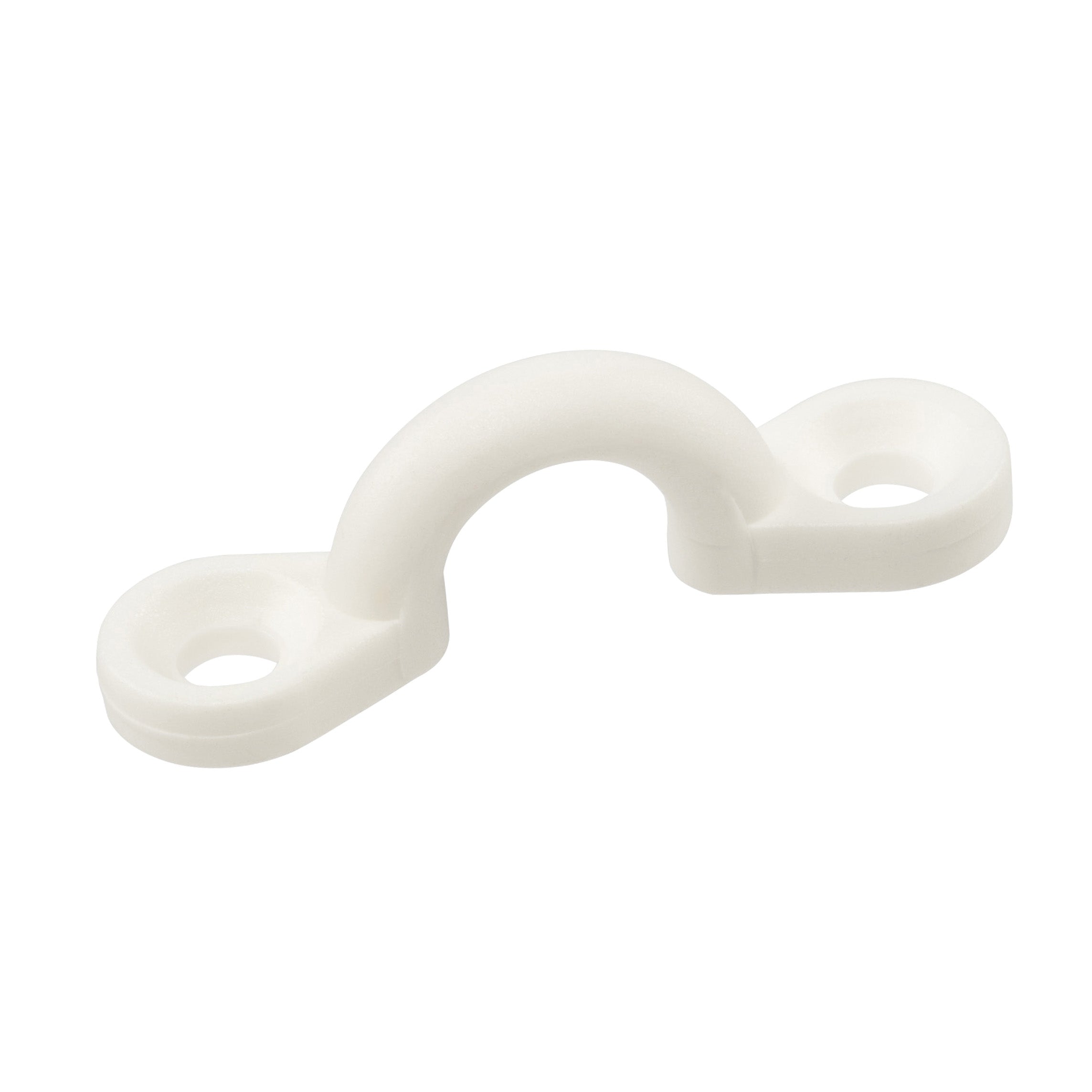

A nylon pad eye (also called a nylon eye strap or nylon pad eye) is a lightweight, non-metallic alternative to stainless steel versions, commonly offered by manufacturers like Whitecap Marine Products. Whitecap's nylon models (e.g., part numbers like 3407BP for black or 3407WP for white) are injection-molded from durable marine-grade nylon, often in black or white to match boat aesthetics.

Detailed Description of a Typical Nylon Pad Eye (e.g., Whitecap 3407 Series)

• Material: High-impact nylon (polyamide), UV-stabilized for marine exposure.
• Design: Similar U-shaped or arched loop with two flat mounting bases featuring countersunk or through holes for fasteners (typically accepting #10 screws or equivalent, often 12mm / ~1/2" hole spacing).
• Dimensions (common for Whitecap nylon models comparable in size to the 3/8" stainless one):
• Inner Diameter (I.D.): Approximately 3/8" to 12mm (~0.47").
• Overall Length: Around 1-7/8" (slightly longer than the 1-5/8" stainless version for similar loop clearance).
• Mounting: Two holes for fasteners (sold separately; often #10 screws recommended).
• Color/Finish: Black (most common for low-visibility on decks) or white; smooth, rounded edges to reduce abrasion or injury risk.
• Weight: Extremely light (a fraction of stainless steel).
• Installation: Simple screw mounting on fiberglass, wood, or composite surfaces; often used with sealant for waterproofing.

These are sold individually or in packs (e.g., 4-pack) and are budget-friendly, typically costing less than stainless equivalents.

Thorough List of Functions and Uses

Pad eyes like this one serve primarily as versatile attachment points, distributing loads and providing secure tie-offs in various applications. Below is a comprehensive breakdown of their key functions and uses, drawing from common marine, industrial, and other contexts. Note that while this specific model does not list load ratings on the product page, pad eyes in general should be paired with appropriately rated hardware (e.g., backing plates for load distribution) and inspected for working/breaking loads based on application; always consult manufacturer guidelines or engineering specs for safety.

Core Functions

• Load Distribution and Attachment: Acts as a fixed eye for looping ropes, chains, cables, or hooks, evenly distributing pulling forces to prevent damage to the mounting surface.
• Corrosion Resistance: The 316 stainless steel construction withstands exposure to moisture, salt, chemicals, and UV light, maintaining structural integrity over time in abrasive or corrosive environments.
• Secure Mounting: Countersunk holes allow for flush installation with fasteners, reducing snagging risks and ensuring a stable base for dynamic loads.
• Versatile Integration: Can be used standalone or with accessories like shackles, blocks, or backing plates to enhance strength and functionality.
• Latching and Hooking: Provides a permanent or semi-permanent point for quick connections, such as clipping carabiners or tying knots.

Uses in Marine Applications

Pad eyes are essential deck hardware on boats, yachts, sailboats, and other vessels for securing fittings and rigging.

• Rigging and Sailing: Mounting points for blocks, staysails, reefing systems, halyards, sheets, or control lines to manage sails and adjust tension.
• Deck Securing: Tie-downs for anchors, fenders, bimini tops, dodgers, or canvas covers to keep them in place during movement or storage.
• Watercraft Transport: Securing kayaks, canoes, or small boats on trailers or larger vessels; also for rigging flounder boards in fishing setups.
• Hoisting and Lifting: Attachment for hoisting equipment, lines, or gear on board, especially in competitive sailing or powerboating.
• Safety and Utility: Creating anchor points for lifelines, harness tethers, or emergency tie-offs; useful on both powerboats and sailboats for deck fittings.
• Fishing and Recreational: Securing fishing rods, nets, or coolers; tying down equipment during rough waters.
